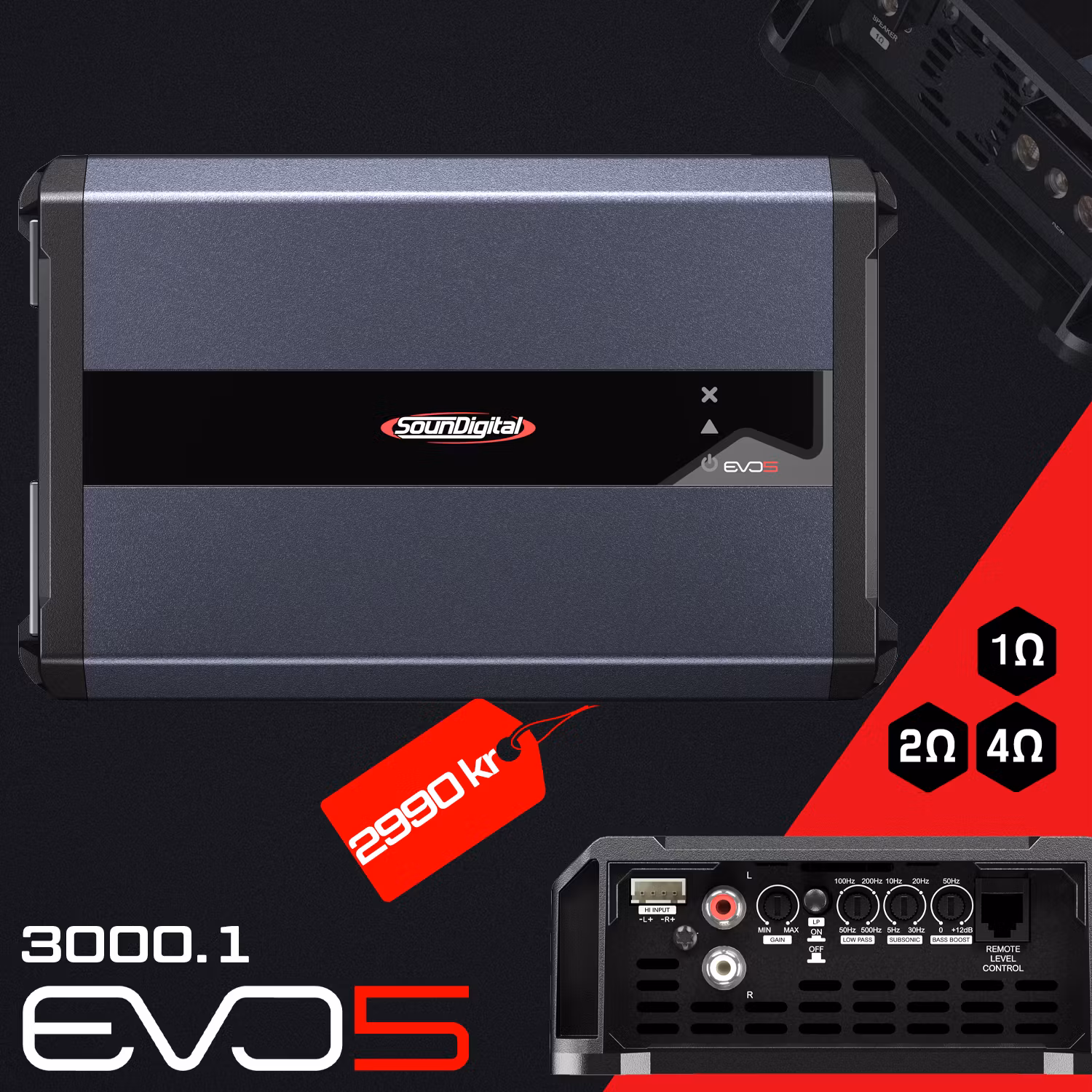

SounDigital 3000.1 EVO 5

The 3000.1EVO 5 is a compact, modern amplifier that delivers 3000W RMS of power distributed over 1 channel. The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.

            4ohm                                                  2ohm                                                          1ohm

Power @ 1Ω  N/A                               Power @ 1Ω   N/A                                          Power @ 1Ω: 1 X 3000W RMS
Power @ 2Ω: N/A                               Power @ 2Ω:  1 X 3000W RMS                       Power @ 2Ω: 1 X 1980W RMS
Power @ 4Ω 1 X 3000W RMS            Power @ 4Ω:  1 X 1980W RMS                        Power @ 4Ω: 1 X 1307W RMS

Frequency Response (-3dB):

5Hz ~ 25kHz

Subsonic Filter:

5Hz ~ 80Hz

Low Pass Filter:

50Hz ~ 1kHz

Bass Boost:

0dB ~ 12dB @ 50Hz

Operating Voltage:

8V – 16V

SNR:

92dB

Input Sensitivity:

0.2V ~ 2V

Current Draw (Music):

2Ω: 139A
4Ω: 140A

Current Draw With Resistive Load:

2Ω: 277A
4Ω: 280A

Total Efficiency:

2Ω: 86%
4Ω: 85%

Damping Factor:

2000

Power Cable:

35mm² (2AWG)

Audio Output Cable:

2Ω: 2 x 2.5 mm² (13 AWG)
4Ω: 2 x 1.5 mm² (15 AWG)

Recommended Fuse (Music):

150A

Recommended Battery:

150Ah

Width:

5.3 in / 13.6 cm

Length:

8.9 in / 22.8 cm

Height:

2.1 in / 5.48 cm

Weight:

1.75 Kg
