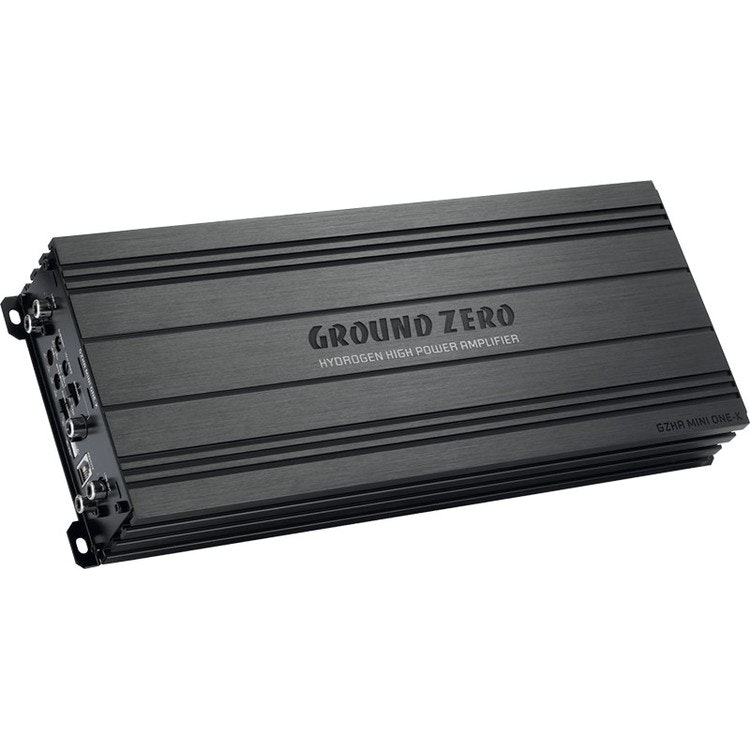

Ground Zero GZHA Mini ONE-K

  • 2 490 kr

1-channel subwoofer amplifier with high efficient class D circuit, integrated activ crossover and compact dimensionsCompact sized mono amplifierSMD componentsCl

Dela
  • Information

1-channel subwoofer amplifier with high efficient class D circuit, integrated activ crossover and compact dimensions

  • Compact sized mono amplifier

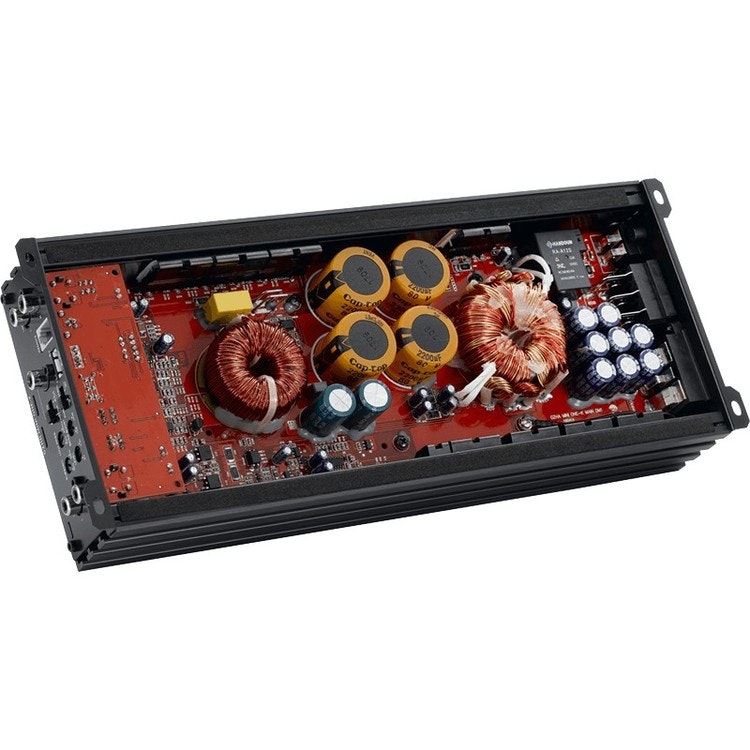

  • SMD components
  • Class D technology
  • Variable active crossover and bass boost, phase shift
  • Link mode (for two amplifiers)
  • Stabilized power supply

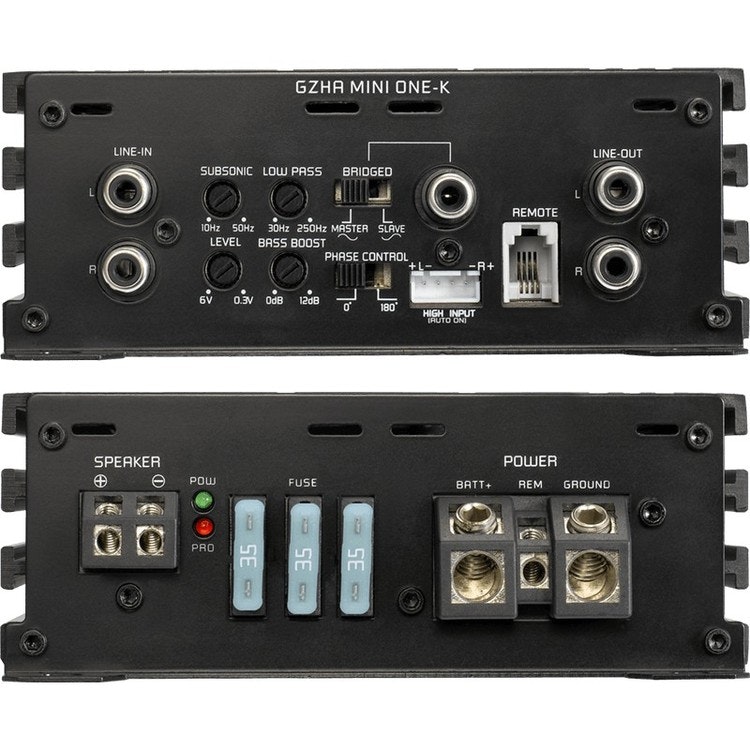

  • Large terminals
  • Solid heatsink with engraved Ground Zero lettering
  • Bass remote control included
  • High-level input with auto-on functi

Class D compact amplifier

Output Power (@ 4Ω) 340 Watts RMS

Output Power (@ 2Ω) 600 Watts RMS

Output Power (@ 1Ω) 1000 Watts RMS

max. Output Power (CEA-2006A / 10%THD+N) 1200 Watts

Frequency Response 10 – 200 Hz

- Lp Filter 30 Hz – 250 Hz (24 dB/Oct)

- Hp Filter 10 Hz – 50 Hz (24 dB/Oct)

- Bp Filter 10 Hz – 250 Hz (24 dB/Oct)

Bass Boost / Phasenregelung (12 dB/ Oct)

High-Level Input / Auto-on

Remote Control

Linkmode

Dimensions (b x l x h)

135 x 322 x 52 mm
