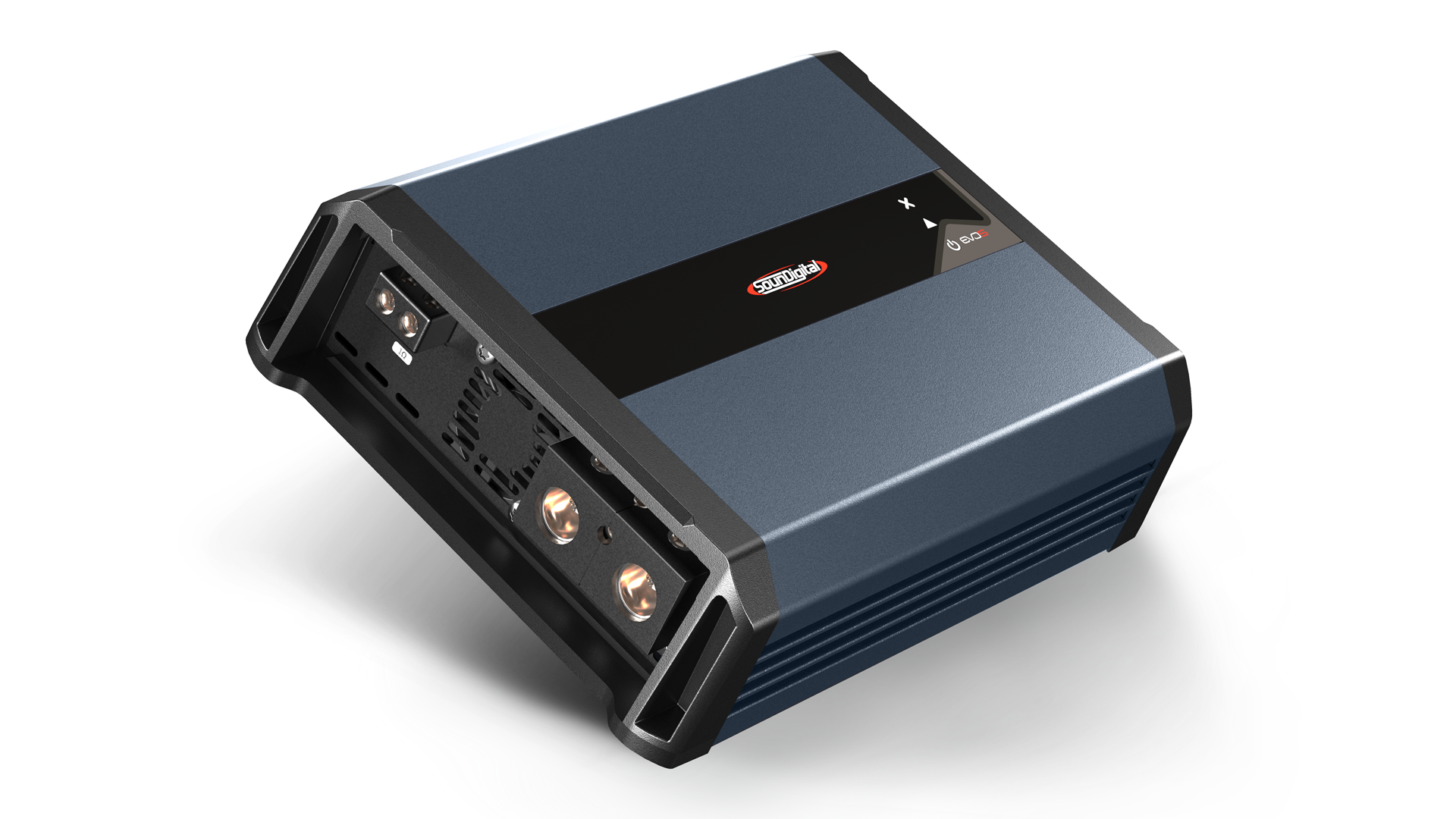

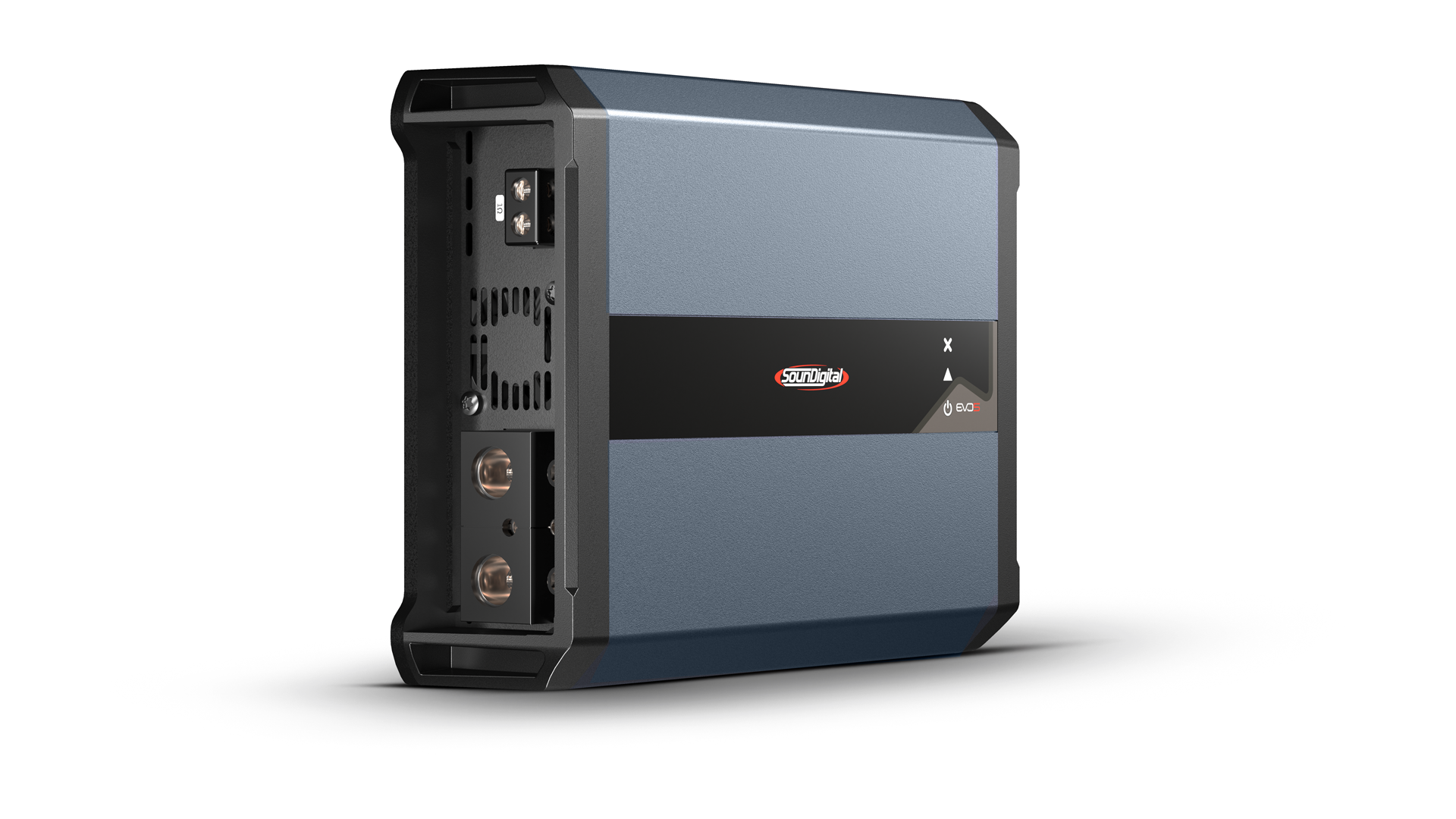

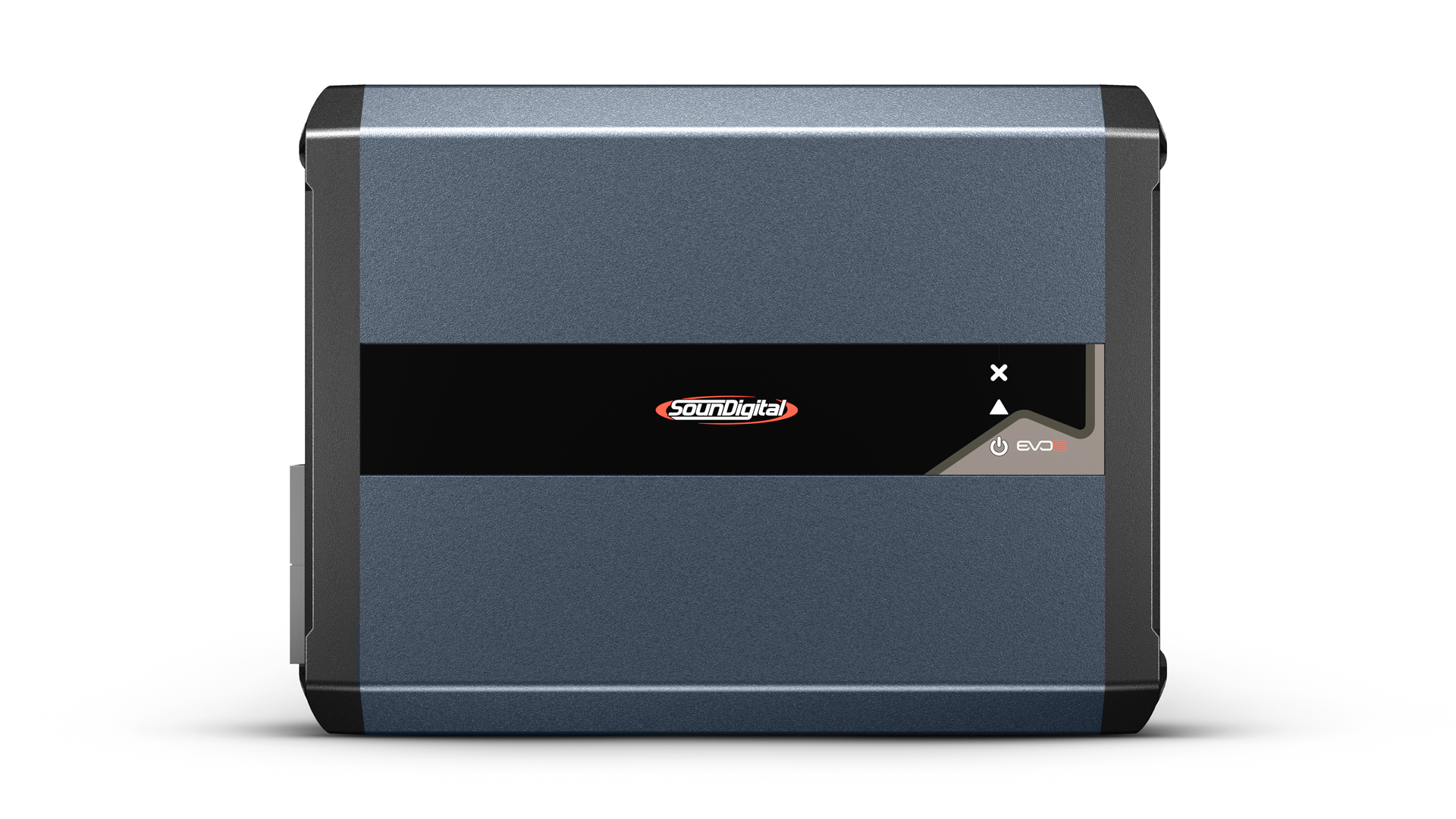

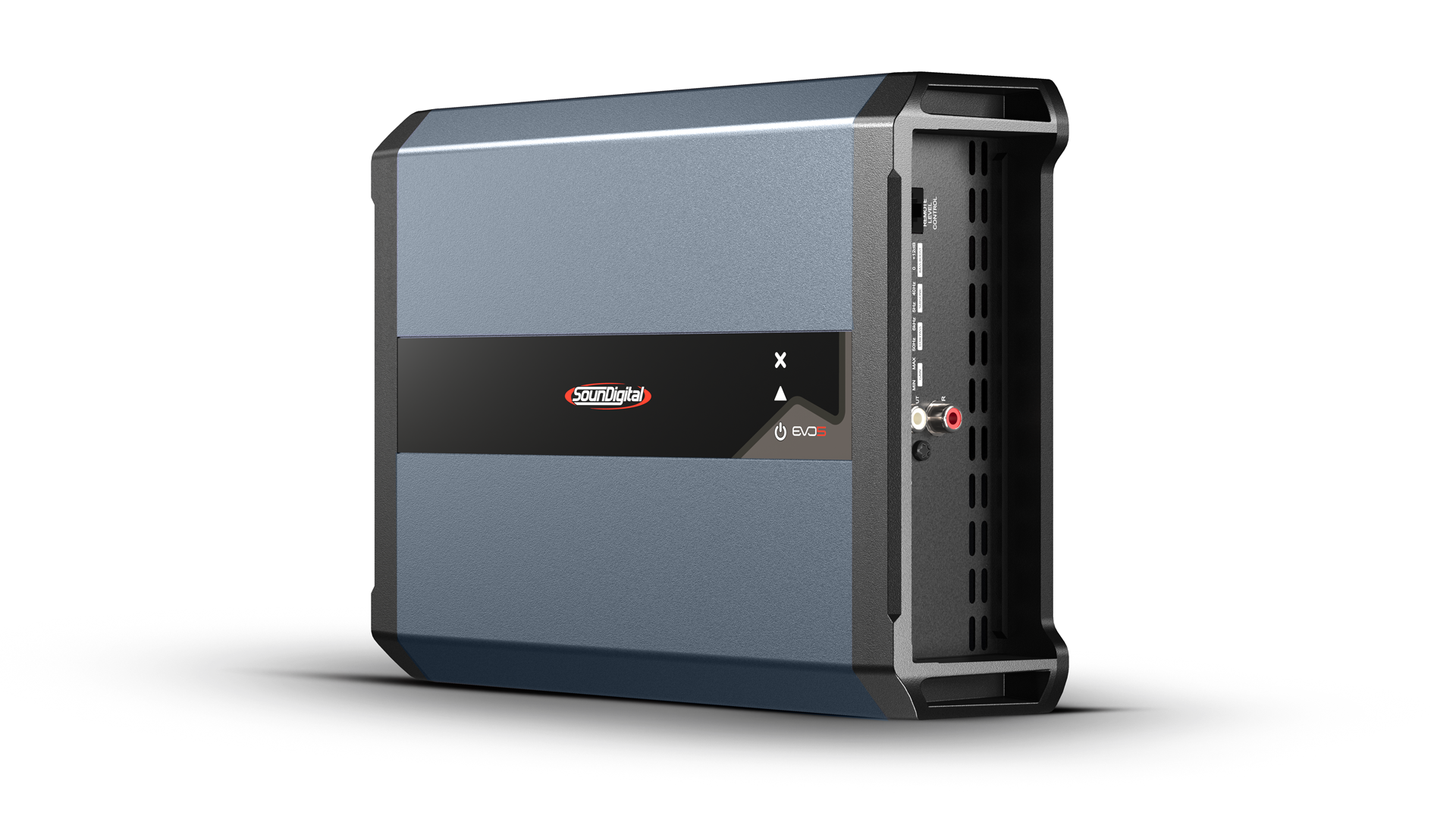

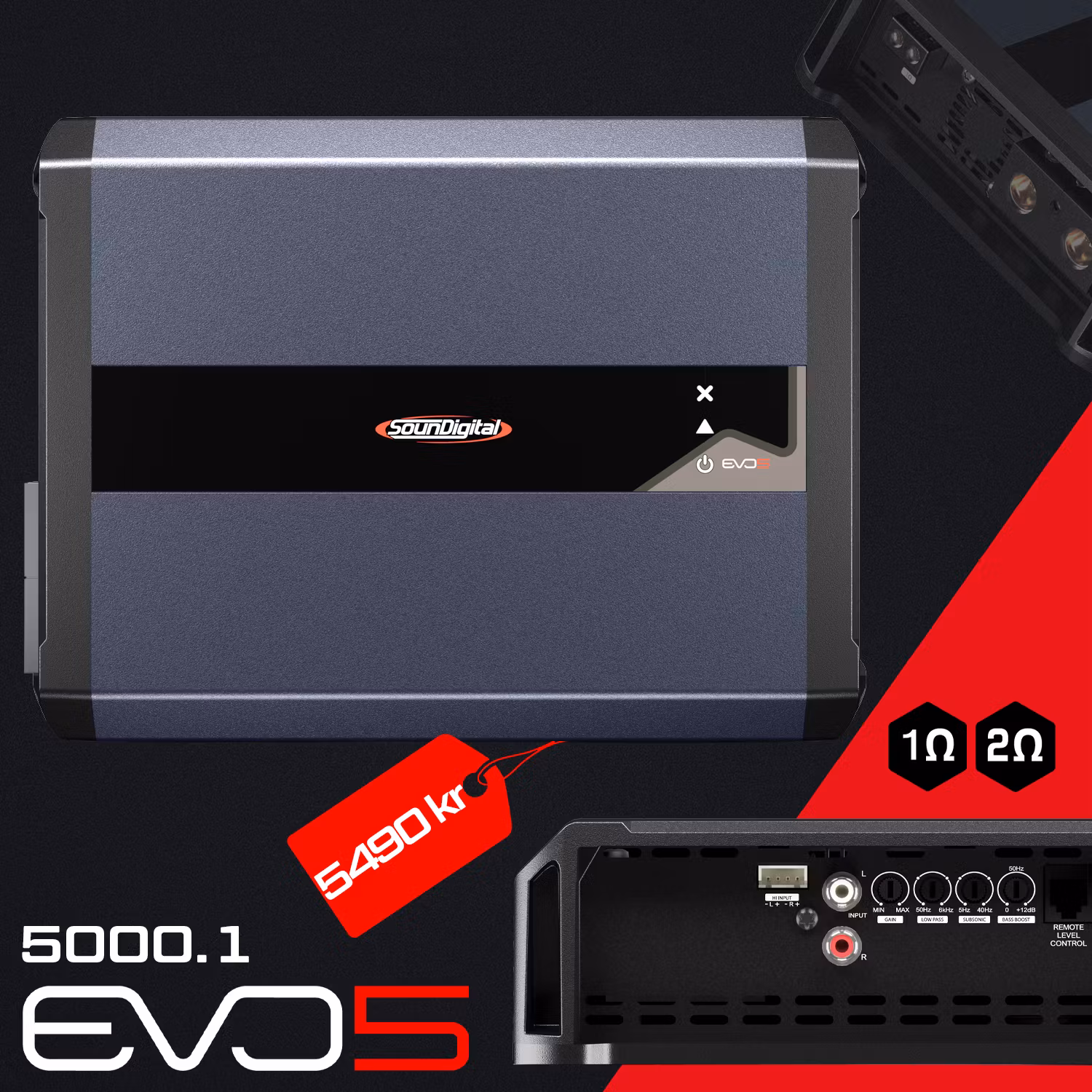

SounDigital 5000.1 EVO 5

The 5000.1EVO 5 is a compact, modern amplifier that delivers 5000W RMS of power distributed over 1 channel. The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.

              1ohm                                                     2ohm

Power @ 1Ω: 1 X 5000 WRMS                  Power @ 1Ω: N/A
Power @ 2Ω: 1 X 3300 WRMS                  Power @ 2Ω: 1 X 5000 WRMS
Power @ 4Ω: 1 X 2178 WRMS                  Power @ 4Ω: 1 X 3300 WRMS

Frequency Response (-3dB):

5Hz ~ 6kHz

Low Pass filter (12dB/oct):

50Hz ~ 6kHz

Subsonic (12dB/oct):

5Hz ~ 80Hz

Operating Voltage:

8V ~ 16V

SNR:

90dB

Input Sensitivity (RCA):

0.2V ~ 2V

Input Sensitivity (High Level input):

1.2V ~ 12V

Current Draw (music):

230A

Current Draw (max.):

461A

Total Efficiency:

86%

Damping Factor (@100Hz nominal impedance):

2000

Power Cable:

50mm² (0 AWG)

Speaker Cable:

2 x 10mm² (7 AWG)

Recommended Fuse (music):

250A

Recommended battery (minimum):

250Ah

Width:

7.1″ / 18 cm

Length:

9.9″ / 25 cm

Height:

2.5″ / 6.32 cm

Weight:

6.06 lb / 2,75 kg
