DD Audio EC 6.5

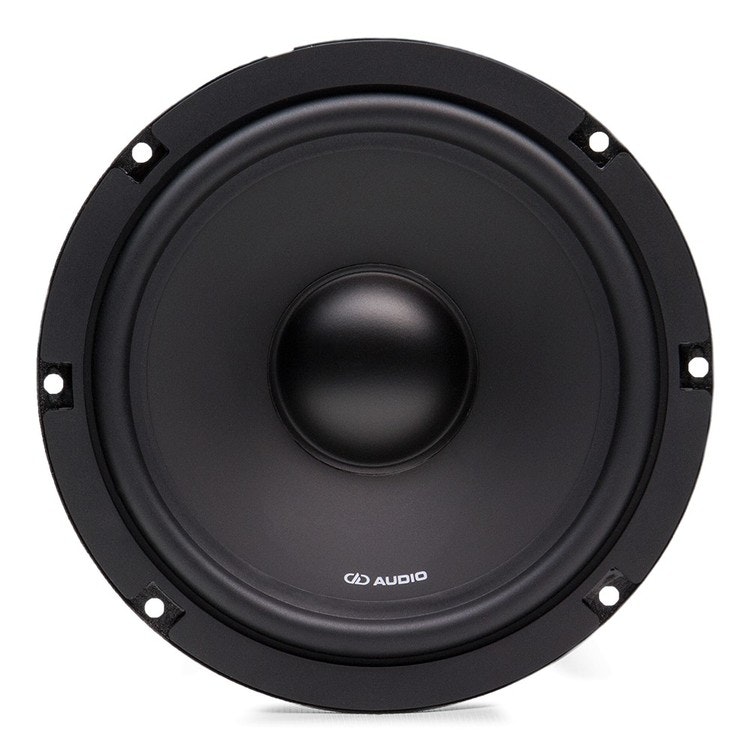

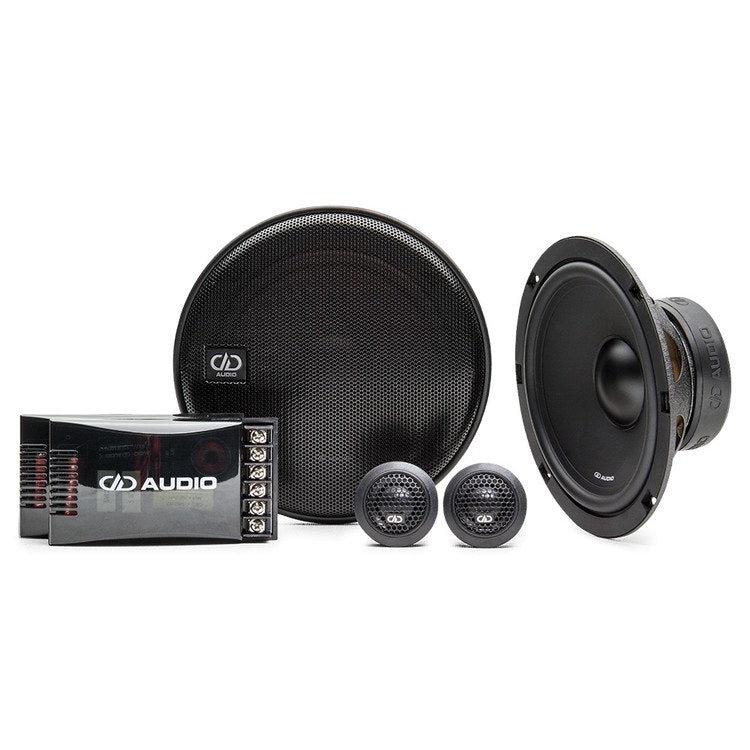

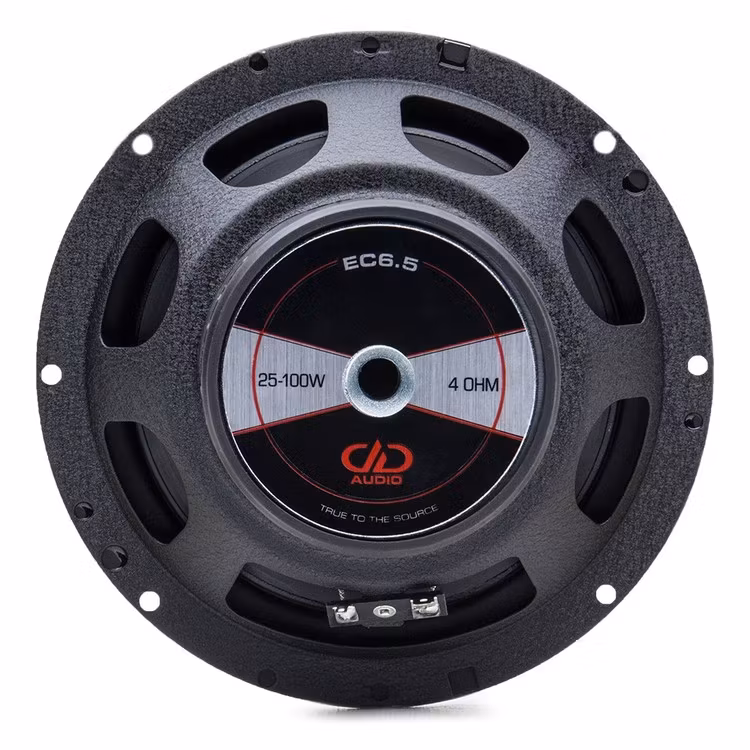

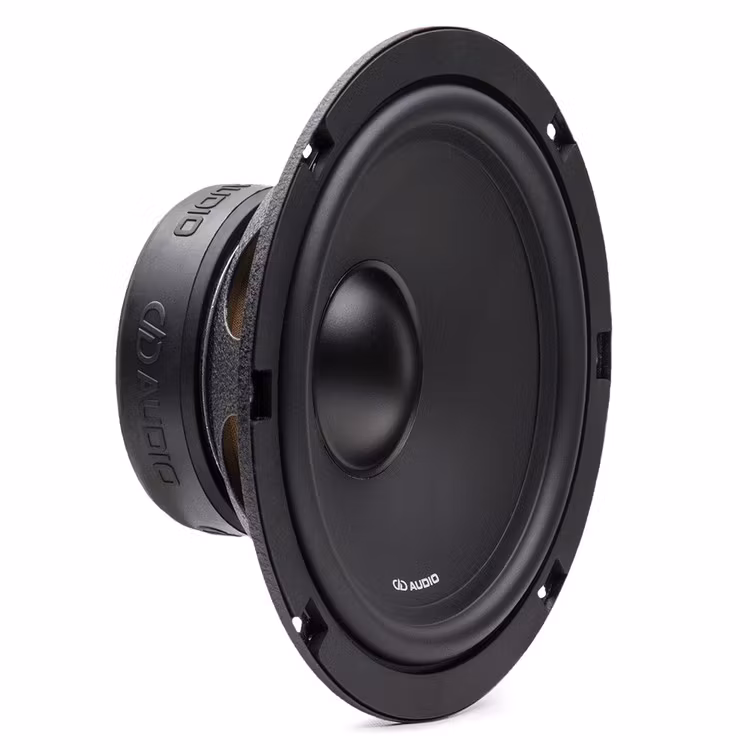

The E Class 6.5 Component Speakers are perfect for the listener who wants to instantly take their system from factory to fantabulous. This 2-way set offers high-end features and an outstanding sound that rivals much more expensive component sets. Woofer: The 6.5-inch woofer features an injection molded poly cone, rubber surround, and rigid steel frame. For reduced inductance, extended high-frequency roll off, and increased efficiency the voice coils features a double slit former and the motor utilizes a copper pole cap. The soft parts are driven with a high flux 11 Oz ferrite magnet motor. Tweeter: The 20-mm silk dome tweeter comes with flush-mount and surface-mount solutions. Crossover: The crossover networks are built with premium components including mylar capacitors, segmented air-core inductors and poly fuses for tweeter protection. Two selectable tweeter levels are provided for fine high-frequency tuning.

Driver Size - in Woofer 6.5″ / Tweeter 20mm
Power Band - Watts 25-100
Impedance 4ohm
Frequency Response - Hz 50-20k
Cutout Diameter - Woofer 142,24mm / Tweeter 40,4mm
Mounting Depth - Woofer 62mm / Tweeter 13,46
